Working with JuPedSim Web-UI Scenarios in Python

Load scenario JSON files exported from the web UI and run them programmatically.

Workflow:

1. Design your scenario in the web UI (geometry, exits, distributions, etc.)

2. Export the scenario as ZIP

3. Load it here, inspect/modify, run, and analyze

import logging
from datetime import datetime

# Silence jupedsim-scenarios' INFO/DEBUG output. See the howto
# "How do I inspect a scenario?" for the full list of levels.
logging.getLogger("jupedsim_scenarios").setLevel(logging.WARNING)

print(f"Executed on {datetime.now().strftime('%d.%m.%Y, %H:%M')}")

from jupedsim_scenarios import load_scenario, run_scenario, run_sweep

Executed on 21.07.2026, 09:41

1. Load and inspect a scenario

scenario = load_scenario("scenario_files/template-scenario.zip")
print(scenario.summary())

Scenario: /home/runner/work/jupedsim-scenarios/jupedsim-scenarios/docs/source/notebooks/cookbook/scenario_files/template-scenario.zip
  Model:         CollisionFreeSpeedModel
  Seed:          420
  Max time:      300s
  Exits:         1
  Distributions: 1
  Stages:        0
  Zones:         0
  Journeys:      0
  Agents:        ~20
    jps-distributions_0: 20 agents

2. Modify parameters before running

scenario.set_agent_count(0, 20)
scenario.max_simulation_time = 60
print(scenario.summary())

Scenario: /home/runner/work/jupedsim-scenarios/jupedsim-scenarios/docs/source/notebooks/cookbook/scenario_files/template-scenario.zip
  Model:         CollisionFreeSpeedModel
  Seed:          420
  Max time:      60s
  Exits:         1
  Distributions: 1
  Stages:        0
  Zones:         0
  Journeys:      0
  Agents:        ~20
    jps-distributions_0: 20 agents

3. Run the simulation

result = run_scenario(scenario)

print(f"Success:          {result.success}")
print(f"Evacuation time:  {result.evacuation_time:.2f}s")
print(f"Total agents:     {result.total_agents}")
print(f"Evacuated:        {result.agents_evacuated}")
print(f"Remaining:        {result.agents_remaining}")

Success:          True
Evacuation time:  31.54s
Total agents:     20
Evacuated:        20
Remaining:        0

4. Analyze trajectory data

df = result.trajectory_dataframe()
print(f"Trajectory: {len(df)} rows, {df['id'].nunique()} agents, {df['frame'].nunique()} frames")
df.head(10)

Trajectory: 5103 rows, 20 agents, 316 frames

	frame	id	x	y	ori_x	ori_y
0	0	1	-14.300273	-0.496209	0.0	0.0
1	0	2	-14.392734	-3.765182	0.0	0.0
2	0	3	-13.250484	1.182421	0.0	0.0
3	0	4	-14.230214	-4.158393	0.0	0.0
4	0	5	-13.709934	0.887278	0.0	0.0
5	0	6	-14.449449	-2.563665	0.0	0.0
6	0	7	-13.428694	-4.395289	0.0	0.0
7	0	8	-13.441598	3.403408	0.0	0.0
8	0	9	-13.422521	-2.653949	0.0	0.0
9	0	10	-13.455260	-0.606839	0.0	0.0

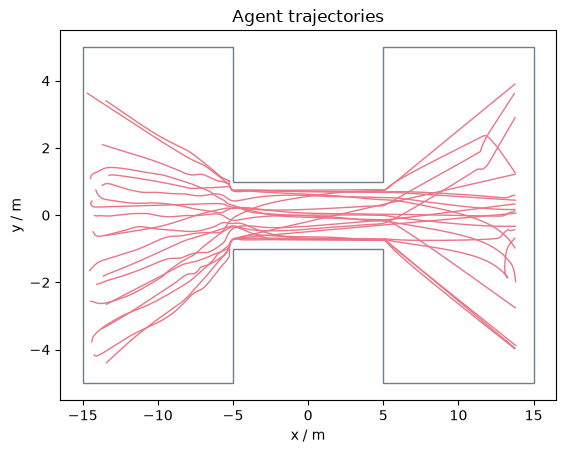

5. Plot trajectories

import pedpy

traj = pedpy.TrajectoryData(df, frame_rate=result.frame_rate)
walkable_area = pedpy.WalkableArea(scenario.walkable_polygon)

pedpy.plot_trajectories(
    walkable_area=walkable_area,
    traj=traj,
).set_title("Agent trajectories")

Text(0.5, 1.0, 'Agent trajectories')

6. Parameter sweep — compare seeds

# Seed-only sweep — run_sweep handles per-trial .copy()/.cleanup()
# bookkeeping and dispatches the trials in parallel.
seeds = [1, 2, 3, 4, 5]
sweep = run_sweep(scenario, seeds=seeds, workers=4)
evac_times = sweep.to_dataframe()["evacuation_time"].tolist()
sweep.cleanup()

for s, t in zip(seeds, evac_times, strict=False):
    print(f"  Seed {s}: {t:.2f}s")

print(f"\nMean: {sum(evac_times)/len(evac_times):.2f}s, "
      f"Min: {min(evac_times):.2f}s, Max: {max(evac_times):.2f}s")

INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}

INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources

INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources

  Seed 1: 31.64s
  Seed 2: 30.29s
  Seed 3: 30.29s
  Seed 4: 29.52s
  Seed 5: 30.28s

Mean: 30.40s, Min: 29.52s, Max: 31.64s

7. Parameter sweep — compare agent counts

import matplotlib.pyplot as plt

base_scenario = load_scenario("scenario_files/template-scenario.zip")
counts = [5, 10, 20, 30]

# Sweep the agent-count axis via run_sweep — parallel trials, no
# manual .copy() / .cleanup() bookkeeping.
sweep = run_sweep(
    base_scenario,
    axes={"n": counts},
    apply={"n": lambda s, v: s.set_agent_count(0, v)},
    workers=4,
)
df = sweep.to_dataframe()
sweep.cleanup()

results_by_count = dict(zip(df["n"], df["evacuation_time"], strict=False))
for n, t in results_by_count.items():
    print(f"{n} agents: {t:.2f}s")

times = [results_by_count[n] for n in counts]

INFO - Using fallback logic: No journeys defined
INFO - Using fallback logic: No journeys defined
INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 30, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Processing with parameters: {'number': 10, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=30
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=10
INFO - Using fallback logic: No journeys defined
INFO - Processing with parameters: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=20
INFO - Distribution jps-distributions_0: {'number': 30, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Distribution jps-distributions_0: {'number': 10, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Processing with parameters: {'number': 5, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'v0_distribution': 'constant'}
INFO - Using default parameters: v0=1.3, radius=0.2, n_agents=5
INFO - Distribution jps-distributions_0: {'number': 20, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Distribution jps-distributions_0: {'number': 5, 'radius': 0.2, 'v0': 1.3, 'distribution_mode': 'by_number', 'percentage': None, 'use_flow_spawning': False, 'flow_start_time': 0, 'flow_end_time': 10, 'strict_spawning': False, 'use_premovement': False, 'premovement_distribution': 'gamma', 'premovement_param_a': None, 'premovement_param_b': None, 'premovement_seed': None, 'radius_distribution': 'constant', 'radius_std': None, 'v0_distribution': 'constant', 'v0_std': None}
INFO - Added 5 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Added 10 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Added 20 agents using fallback logic (immediate), prepared 0 flow sources
INFO - Added 30 agents using fallback logic (immediate), prepared 0 flow sources

5 agents: 24.25s
10 agents: 26.69s
20 agents: 31.54s
30 agents: 33.97s

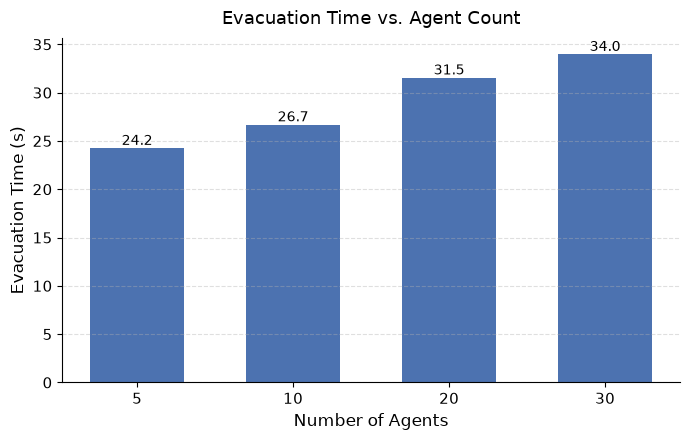

8. Plot results

fig, ax = plt.subplots(figsize=(7, 4.5))

bars = ax.bar(
    [str(n) for n in counts],
    times,
    color="#4C72B0",
    width=0.6
)

ax.set_xlabel("Number of Agents", fontsize=12)
ax.set_ylabel("Evacuation Time (s)", fontsize=12)
ax.set_title("Evacuation Time vs. Agent Count", fontsize=13, pad=10)

ax.tick_params(axis="both", labelsize=11)

ax.grid(axis="y", linestyle="--", alpha=0.4)

# cleaner axes
ax.spines["top"].set_visible(False)
ax.spines["right"].set_visible(False)

for bar in bars:
    height = bar.get_height()
    ax.text(
        bar.get_x() + bar.get_width() / 2,
        height,
        f"{height:.1f}",
        ha="center",
        va="bottom",
        fontsize=10
    )

plt.tight_layout()
plt.show()

INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.

INFO - Using categorical units to plot a list of strings that are all parsable as floats or dates. If these strings should be plotted as numbers, cast to the appropriate data type before plotting.

Cleanup

result.cleanup()
print("Done.")

Done.
